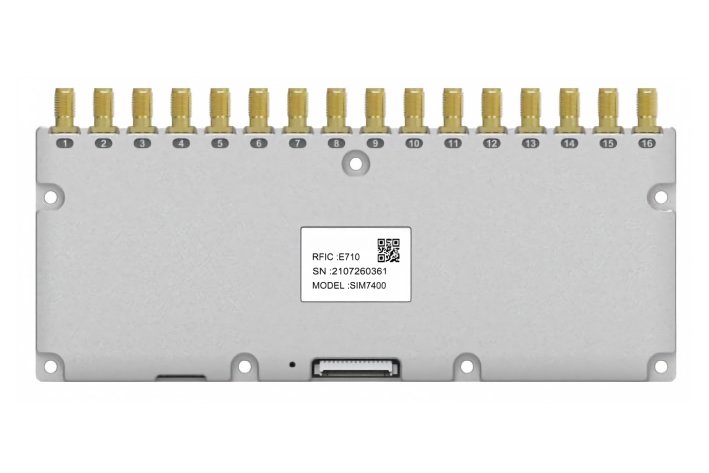

Powered by the Impinj E710 chip, this 16-channel UHF RFID reader supports up to 33 dBm RF output power and 16 SMA antenna ports. Designed for high-density tag inventory and multi-zone applications, it enables flexible point-by-point inventory with fast and reliable multi-tag reading.
Features
- Based on the new generation Impinj E710 chip.
- Supports EPCglobal UHF Class 1 Gen 2 & Gen 2X.
- 33dBm RF output power.
- 16 SMA connectors, supporting the connection of 16 antennas.
- High performance anti-collision recognition algorithm.
- Metal casing, conducive to heat dissipation.
Specifications
| Physical Features | |
| Size | 181.5mm x83.3mm x 8mm |
| Weight | 248g |
| Connector material质 | Brass gold plated |
| PCB | FR4 gold plated |
| Shield Material | Aluminum Alloy |
| RF-parameters | |
| Chip | Impinj E710 |
| Air Protocol | EPC global UHF Class 1 Gen 2 (ISO 18000-6C)&Gen2X |
| Frequency | NA: 902 ~ 928MHz |
| EU: 865 ~ 868MHz | |
| CN: 920 ~ 925MHz | |
| OPEN:860 ~ 960MHz | |
| Sensitivity | -85dBm@10%BER |
| Antenna interface | SMA*16 |
| RF Power | 5dBm ~ 30 or 33dBm (±1dB) |
| Working Mode | Fixed / Hop frequency |
| Temp. detect | Support |
| Ant. detect | Support |
| RF-features | ||
| Inventory peak speed | >1000 tags/s | |
| read range | >13m（8dBi antenna） | |
| tag cache | 1000pcs, @96 bit EPC | |
| Communication Interface | ||
| Hardware interface | UART serial port (power, TTL, GPIO)9600~921600bps,@115200bps | |
| GPIO | 2 GPI, 2 GPO （3.3V TTL） | |
| Communication | 15pin connector Uart3.3V（TTL） | |
| Power supply | ||
| Voltage | DC 5V±5% | |
| Consumption | 10W（peak）, 2A@5V0.8W（standby）,0.16A@5V0.1W（Low power mode standby）,0.02A@5V | |
| Environment features | ||
| Work Temp. | -25°C ~ +65°C | |
| Storage Temp. | -40°C ~ +85°C | |
| Humidity | 5 ~ 95%, Non-condensing (+25°C) | |
| Electrostatic Protection | Contact discharge: 6KV (antenna port)Contact discharge: 2KV (IO port) | |
| Heat dissipation | External heat sink air cooling | |
| API | ||
| API support | C, C#/.NET, Java | |
