UA10N delivers focused and reliable tag reading with its 10.5 dBi high gain and narrow 36° beam. Its compact design fits easily into smart cabinets and other space-constrained applications, while multiple mounting holes and an extended feeder cable simplify installation.
Features
- 10.5 dBi high-gain circularly polarized antenna.
- Narrow 36° beam for focused coverage.
- Slim design for smart cabinet applications.
- Easy installation with 4 mounting holes.
- Extended feeder cable, no additional extension required.
Specifications
| ELECTRICAL | |
| Frequency Range | 865-868Mhz or 902-928Mhz |
| Polarization | Circular |
| Far-Field Gain | 10.5 dBi |
| Beamwidth | 36° x 70° |
| Typical VSWR | ≤1.3 |
| Nominal Impedance | 50 (Ω) |
| Maximum Input Power | 50 W |
| PHYSICAL | |
| Dimensions (L x W x D) | 450*200*22mm |
| Weight | 0.9 kg |
| Radome Material | Industry ABS |
| Connector type / position: | SMA-J |
| Color | White |
| Operating Temperature | -30 – +80°C |
| Storage Temperature | -40 – +85°C |

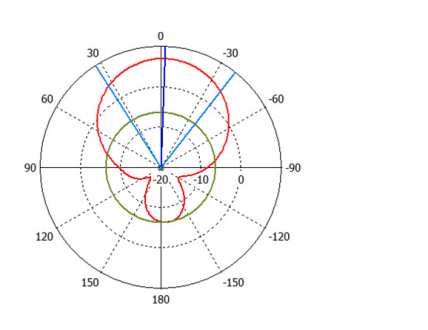

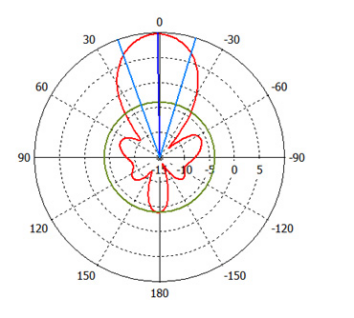

Radiation Pattern
