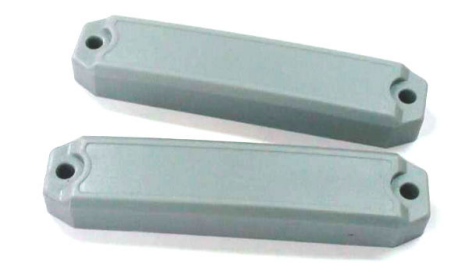

This rugged anti-metal RFID tag features a durable ABS housing designed to withstand impact, water, and dust in demanding environments. With reliable performance on metal surfaces and flexible installation using 3M adhesive or screws, it is ideal for outdoor asset tracking, equipment management, and industrial applications.
Features
- Industrial-grade ABS housing for enhanced durability and impact resistance.
- IP68 waterproof and dustproof design for outdoor environments.
- Reliable RFID performance on metal surfaces.
- Supports both 3M adhesive and screw mounting options.
- Ideal for industrial, outdoor, and asset tracking applications.
Specifications
| PHYSICAL | |
| Material | Reinforced ABS |
| Sticker | With strong sticker |
| Dimension | 85*20*11mm（Hole: 4mm） |
| Weight | 10 g |
| Protection Level | IP68 |
| Installation | Securely fixed with strong adhesive or screws |
| Drop test | 1m, 200 times |
| RFID | |
| Air interface protocol | EPC Global Class1 Gen2/ ISO 18000-6C |
| Operational frequency | 8650-960MHz |
| IC type | Impinj M4QT |
| Memory configuration | EPC: 96bits, User Memory: 512 bits |
| Data Rate | Forward: 40-160kbits/s, reverse: 40-640kbits/s |
| Read range | Max 12 m by fixed reader, 6m by handheld reader |
| Data hold | >10 years, Wipe more than 100000 times |
| ENVIRONMENT | |
| Operating temperature | -30°C～70°C |
| Ambient temperature | -40°C～80°C |
| Storage condition | +20°C / 90％ RH |
