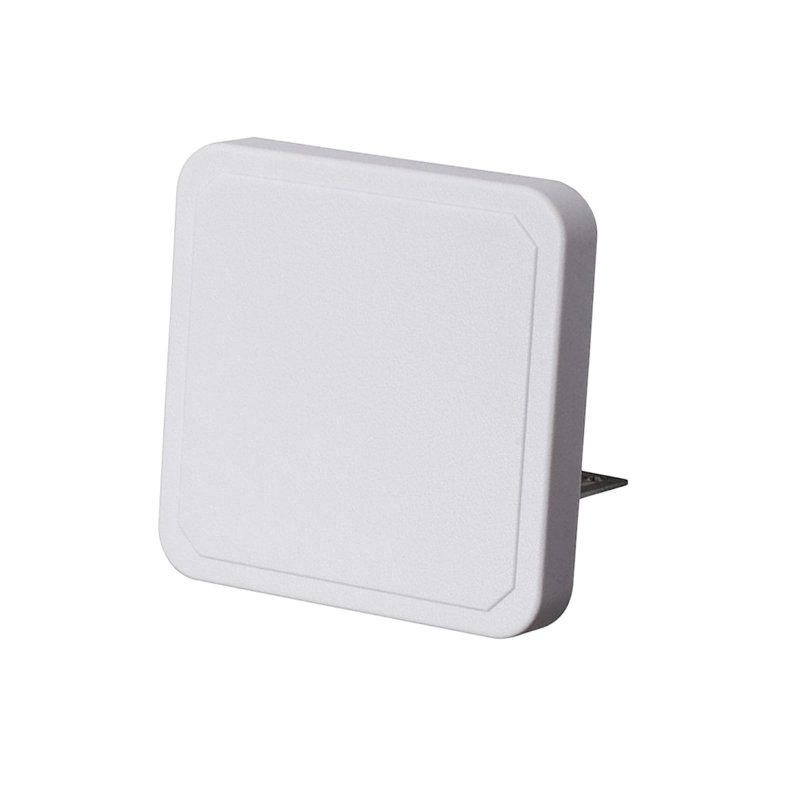

This compact UHF RFID antenna features 6 dBi circular polarization and IP66 protection for stable performance in indoor and outdoor environments. Its lightweight design is ideal for space-constrained installations and short-range RFID applications.
Features
- 6 dBi circular polarization for stable and consistent tag reading.
- IP66-rated for reliable outdoor use.
- Compact and lightweight design, ideal for short-range RFID applications.
Specifications
| ELECTRICAL | |
| Frequency Range | 860MHz～960MHz |
| Polarization | Circular |
| Far-Field Gain | 6 dBi |
| Beamwidth | 70° x 60° |
| Typical VSWR | ≤1.3 |
| Nominal Impedance | 50 (Ω) |
| IM.3rd Order(2x43dBm) | <-150dBc |
| Lightning Protection | DC to ground |
| Maximum Input Power | 100 W |
| PHYSICAL | |
| Dimensions (L x W x D) | 130 x 130 x 18 mm |
| Weight | 0.2 kg |
| Radome Material | ABS+Aluminum |
| Environmental Rating | IP66 |
| Connector type | SMA |
| Color | White |
| Mounting | Flush |
| Operating Temperature | -30 – +80°C |
| Storage Temperature | -40 – +85°C |

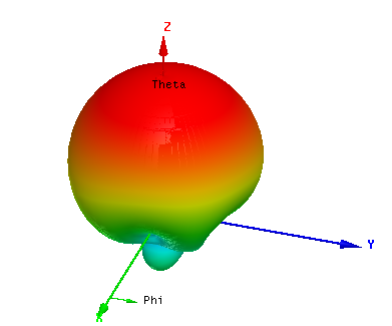

Radiation Pattern
