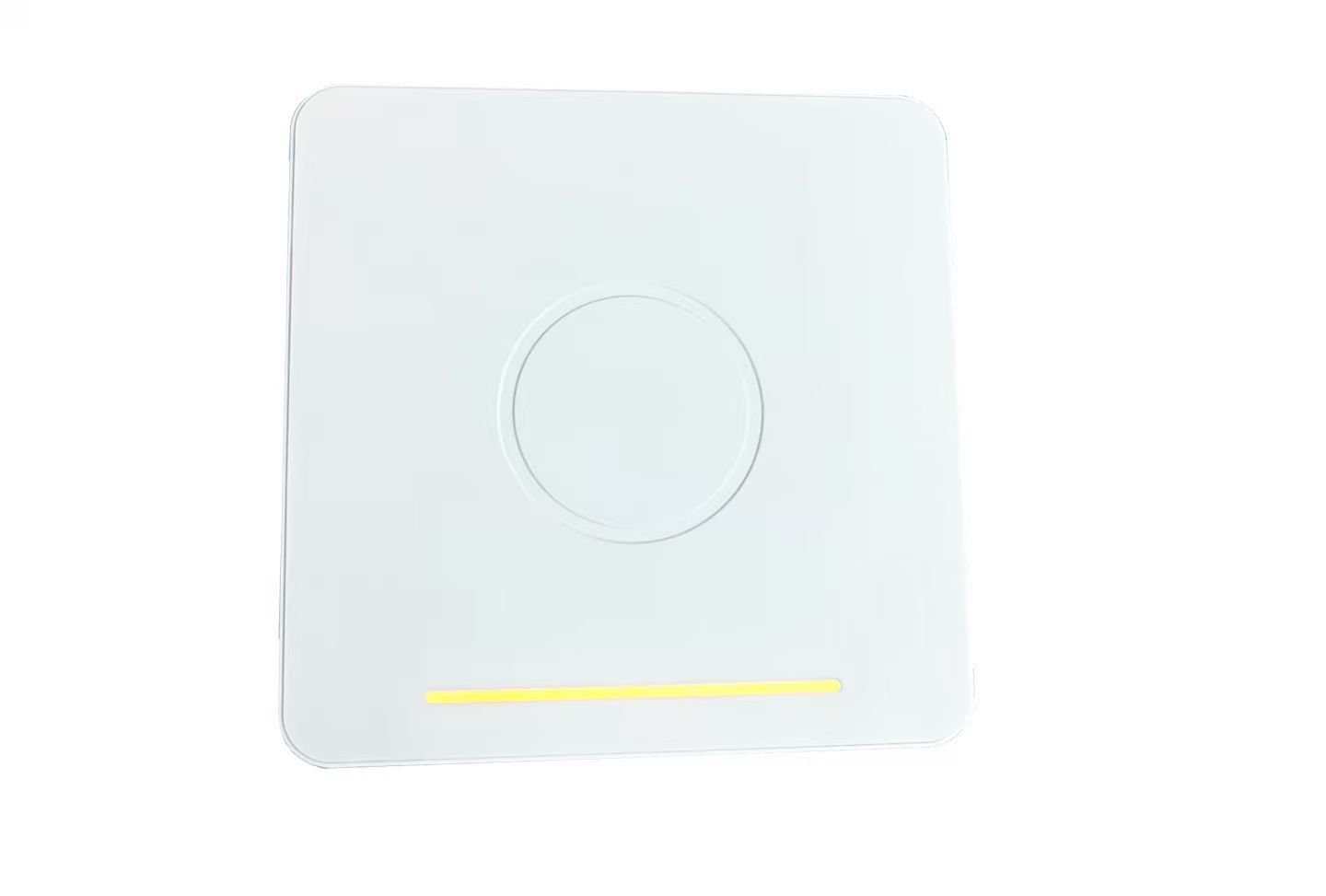

URI9L integrated UHF RFID reader delivers reliable long-range identification and efficient multi-tag reading performance. Featuring Impinj chip, built-in 9 dBi circular antenna, LED status indication, and flexible connectivity options, it is well suited for auto parking, vehicle tracking, access control, asset tracking applications.
Features
- Impinj chipset delivers reliable long-range and high-speed multi-tag reading performance.
- Adjustable RF output power from 0 to 33 dBm for flexible read range control.
- Built-in 9 dBi circularly polarized antenna for stable long-range identification.
- Supports RJ45, RS232, RS485, and Wiegand interfaces for easy system integration.
- Two inputs and one output enable connection with external devices and sensors.
- LED status indicator provides instant visual feedback during operation.
- Rugged and reliable design for demanding industrial and outdoor environments.
Specifications
| SDK & FIRMWARE | |
| Firmware Upgrade | Demo software |
| API Support | Windows – .NET, Java SDK Android – Java SDK Linux – Java SDK |
| PHYSICAL | |
| Dimensions | 290*290*82mm |
| Weight | 1.0 kg (Without accessories) |
| Housing Material | Aluminum +ABS |
| RFID | |
| Air Protocols | ISO/IEC18000-6C / EPC C1Gen2 |
| Frequency | USA: 902 MHz-928MHz (FCC part 15)EU：865MHz～868MHz (ETSI EN 302208)Specified frequency for other regions |
| Built-in antenna | Circular 9dBi, VSWR ≤ 1.2:1 |
| RF Output Power | 0dBm-33dBm (±1dBm) adjustable |
| Channel bandwidth: | ＜200KHz |
| Read Distance | 0-20m (According to Tag & Environment) |
| Read Speed | 500 times/sec |
| Anti-collision | Support multi-tag inventory |
| Work Mode: | Fixed/hop frequency optional |
| CONNECTION | |
| Communications | RJ45, RS232, RS485, Wiegand26/34/66 |
| Wireless | WiFi or Bluetooth |
| General Purpose I/O | 2 optcoupler inputs, 2 5V outputs |
| Power supply | DC9V-30V, 12W |
| ENVIRONMENTAL | |
| Operating Temp. | -20～+70°C |
| Storage Temp. | -40～+85°C |
| Humidity | 5-90% non-condensing (+25℃) |
| Sealing | IP65 |
