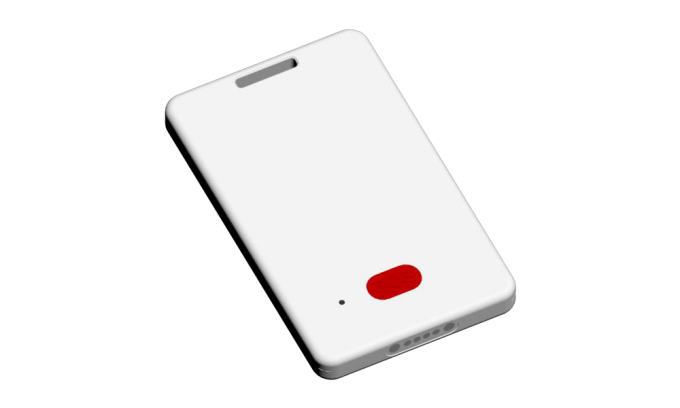

The UWB tag provides accurate real-time positioning with up to 30 cm accuracy and over 100 m coverage. Its compact design combines motion sensing, smart power management, and one-touch SOS alerts for reliable personnel and asset tracking. With a rechargeable 800 mAh battery and IP64 protection, it is suitable for industrial and safety-critical applications.
Features
- Up to 30 cm positioning accuracy for precise real-time tracking
- 100+ m coverage radius for wide-area positioning
- Built-in high-gain PA for enhanced ranging performance
- Built-in accelerometer and gyroscope for motion detection
- 15-day battery life at 1 Hz for extended operation
- One-touch SOS with vibration, sound, and LED alerts
- Smart sleep mode for improved battery efficiency
- IP64 protection for reliable everyday industrial use
Specifications
| UWB | |
| Frequency | 6-8 GHz |
| Positioning Standard | 802.15.4-2011 |
| Update Rate | 0.1 to 50Hz |
| Coverage Radius | >100m (no obstruction or interference) |
| Functions | |
| Smart sleep | Supported |
| Gyroscope | Included |
| Alarm | one-touch SOS, vibration, sound alerts, LED alert included |
| Low Battery Alert | Support |
| Battery Life | 15 days (1Hz) |
| Battery Capacity | 800mAh |
| Charging Method | Magnetic charging |
| Charging Time | ≤2h |
| PHYSICAL | |
| Dimensions | 90*54*9 mm |
| Weight | 35g |
| Housing Material | ABS |
| ENVIRONMENTAL | |
| Operating Temp. | -20～+70°C |
| Storage Temp. | -30～+85°C |
| Humidity | 0-95% non-condensing (+25℃) |
| Protection Rating | IP64 |
