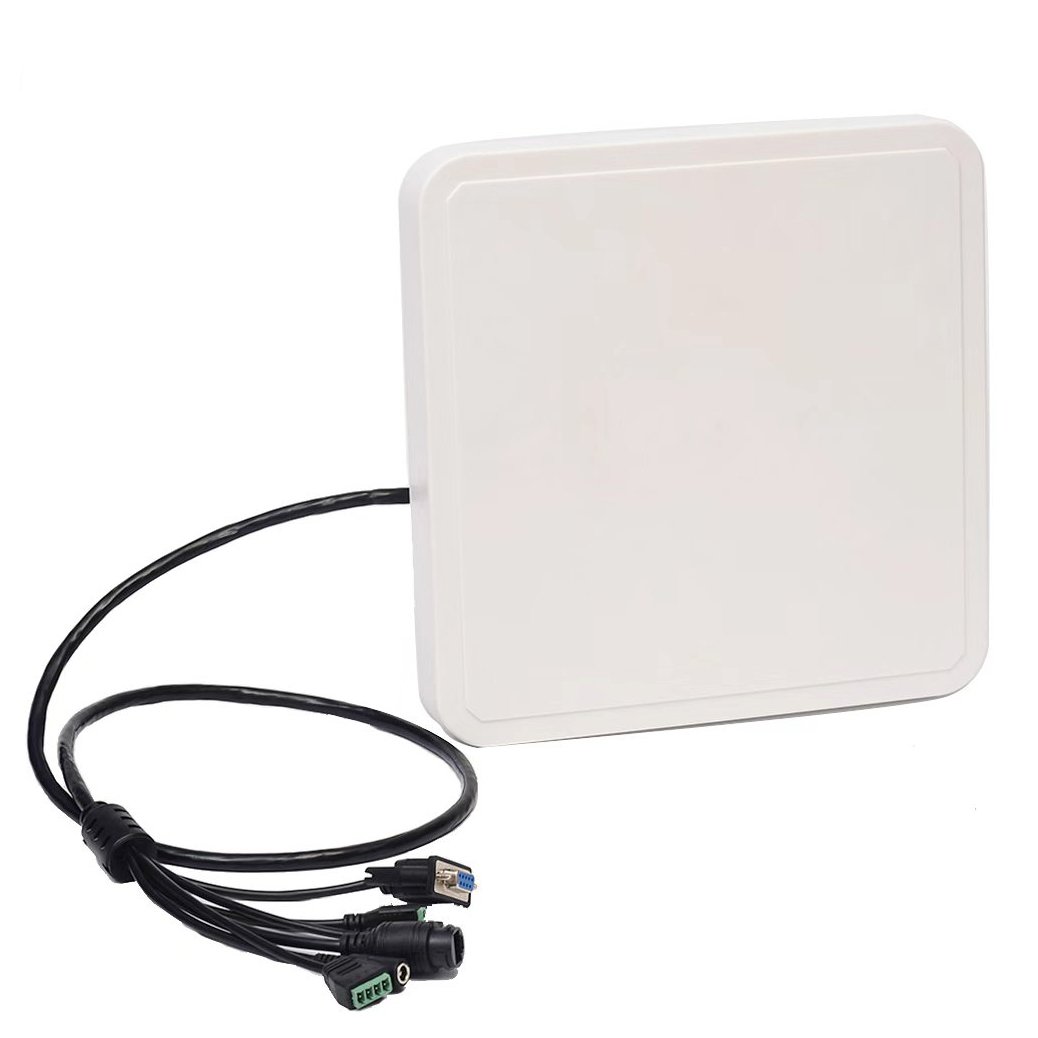

URI9 is a high-performance UHF integrated reader with high end chip and 9dbi antenna built-in. It can achieve long read range up to 20m, fast reading speed for multiple tags. Widely used in various applications such as vehicle tracking, E-toll system, assets tracking systems and other tracking purpose.
Features
- Impinj chipset supports reliable multi-tag reading.
- Adjustable RF output power up to 33 dBm for flexible read range control.
- Built-in 9 dBi circularly polarized antenna with up to 20 m typical read range.
- Supports active and response working modes.
- Low-power design with 12 W power consumption.
- RJ45, RS232, RS485, and Wiegand interfaces for flexible integration.
- 2 inputs and 1 output for external device connection.
Specifications
| PHYSICAL | |
| Dimensions | 258*258*83mm |
| Weight | 1.0 kg (Without accessories) |
| Housing Material | Aluminum + ABS |
| RFID | |
| Air Protocols | ISO/IEC18000-6C / EPC C1Gen2 |
| Chip | Impinj E310 |
| Frequency | USA: 902 MHz-928MHz (FCC part 15)EU：865MHz～868MHz (ETSI EN 302208) |
| Built-in antenna | Circular 9dBi, VSWR ≤ 1.2:1 |
| RF Output Power | 0dBm-33dBm (±1dBm) adjustable |
| Channel bandwidth: | ＜200KHz |
| Read Distance | 0-20m (According to Tag & Environment) |
| Read Speed | 500 times/sec |
| Anti-collision | Support multi-tag inventory |
| Work Mode: | Fixed/hop frequency optional |
| CONNECTION | |
| Communications | RJ45, RS232, RS485, Wiegand26/34/66 |
| Wireless | WiFi or Bluetooth (Optional) |
| General Purpose I/O | 2 optcoupler inputs, 2 5V outputs |
| Power supply | DC9V-30V, 12W |
| ENVIRONMENTAL | |
| Operating Temp. | -20～+70°C |
| Storage Temp. | -40～+85°C |
| Humidity | 5-90% non-condensing (+25℃) |
| Sealing | IP65 |
