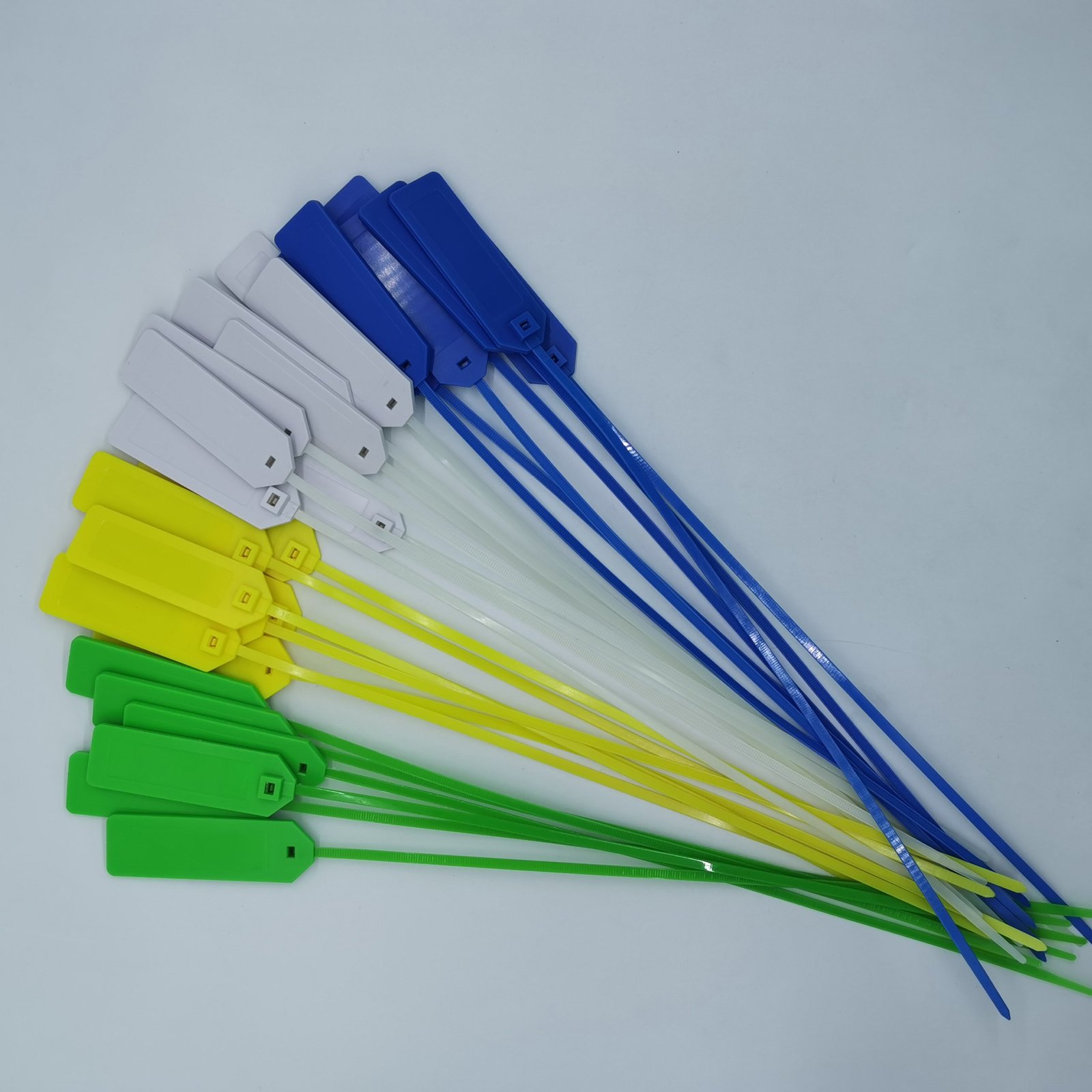

UHF RFID Cable Tie Tag is ideal for irregular-shaped items such as cables, pipes, fresh products, and assets. Its integrated tie tail enables quick installation, while the tamper-resistant ABS housing provides waterproof and wear-resistant protection for reliable use.
Features
- Up to 12 m read range with fixed RFID readers.
- Tamper-resistant for secure, one-time use.
- Waterproof and wear-resistant for demanding environments.
Specifications
| PHYSICAL | |
| Housing Material | ABS |
| Size | 448*28 mm (tag part 93*28mm, tail 355mm) |
| Weight | 3g |
| Ambient Temperature | -20°C ~ 60°C |
| Attachment | Tie with tail |
| RFID | |
| Protocol | EPC global C1 Gen2 / ISO 18000-6C |
| Frequency | 902-928MHz, 865-868MHz |
| Working Mode | Read/Write |
| Modulation Mode | FHSS |
| Chip | Impinj MR6 Optional |
| Read Range | Fixed reader: 0-12 m, Handheld: 0-6m |
| User Memory | EPC≥96bits |
| Data-hold | >10 years, wipe more than 100,000 times |
