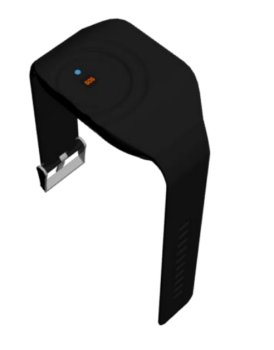

The TW1 is a wrist-worn UWB positioning tag designed for real-time personnel tracking. It features one-touch SOS alerts, vibration and buzzer notifications, and optional INS support. Ideal for worker safety and location tracking in factories, warehouses, construction sites, tunnels, and other industrial environments.
Features
- Up to 30 cm positioning accuracy
- 100+ m coverage range
- Built-in high-gain PA for enhanced ranging
- Motion-based power saving with integrated accelerometer
- Up to 15 days battery life
- One-touch SOS emergency alert
- Built-in vibration and buzzer notifications
Specifications
| UWB | |
| Frequency | 6-8 GHz |
| Positioning Standard | 802.15.4-2011 |
| Update Rate | 0.1 to 50Hz |
| Coverage Radius | >100m (no obstruction or interference) |
| Functions | |
| Smart sleep | Supported |
| Gyroscope | Included |
| Alarm | one-touch SOS, vibration, sound alerts, LED alert included |
| Low Battery Alert | Support |
| Battery Life | 15 days (1Hz) |
| Battery Capacity | 400mAh |
| Charging Method | Magnetic charging |
| Charging Time | ≤2h |
| PHYSICAL | |
| Dimensions | 14*57.6*40mm |
| Weight | 15g |
| Housing Material | ABS |
| ENVIRONMENTAL | |
| Operating Temp. | -20～+70°C |
| Storage Temp. | -30～+85°C |
| Humidity | 0-95% non-condensing (+25℃) |
| Protection Rating | IP67 |
