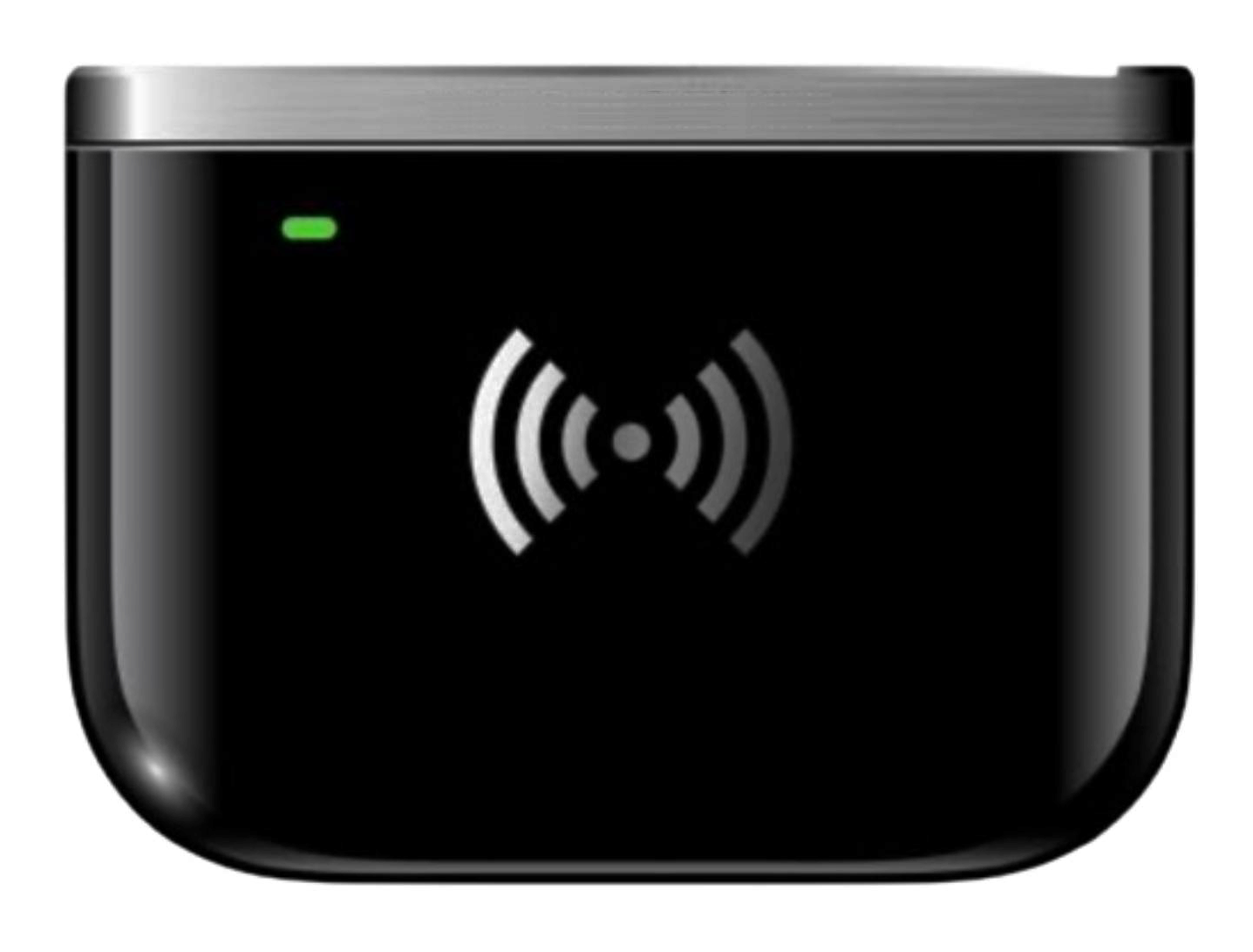

URD7 is portable UHF RFID reader, boasting plug-and-play USB function for seamless integration. Also support Bluetooth connection with Android Mobile. Compact design makes it easy to add UHF RFID capabilities to smartphones or computers.
Features
- Easily attaches to the back of a smartphone to add UHF RFID capabilities.
- USB plug-and-play for quick connection and easy use.
- Supports wireless connection with Android smartphones via Bluetooth.
- HID functionality enables RFID data to be directly entered into mobile applications.
- Compact and lightweight for convenient mobile RFID applications.
Specifications
| PHYSICAL | |
| Dimensions | 62.5*48*9 mm |
| Weight | 0.15kg |
| Housing Material | ABS cover+ aluminum |
| Communication | USB Type C |
| Integrated antenna | Circular antenna |
| Power supply | USB cable |
| Visual Status Indicator | Power, Status |
| RFID | |
| Air Protocol | ISO/IEC 18000-6C/EPC C1G2 |
| Chipset | Impinj E310 |
| Frequency | USA: 902 MHz-928MHz (FCC part 15) |
| EU: 865-868MHz (ETSI EN 302208) | |
| Output Power | 0~18dBm±1dB |
| Consumption | 1.2W @ +18dBm |
| Channel bandwidth | ＜200KHz |
| Read Range | 0-30cm |
| Write Range | 0-10cm |
| Working Mode | Fixed/Hop frequency optional |
| API Support | Windows platform – .net, Java, Android |
| ENVIRONMENTAL | |
| Operating Temp. | -20 – +70°C |
| Storage Temp. | -40 – +85°C |
| Humidity | 5-90% non-condensing (+25℃) |
