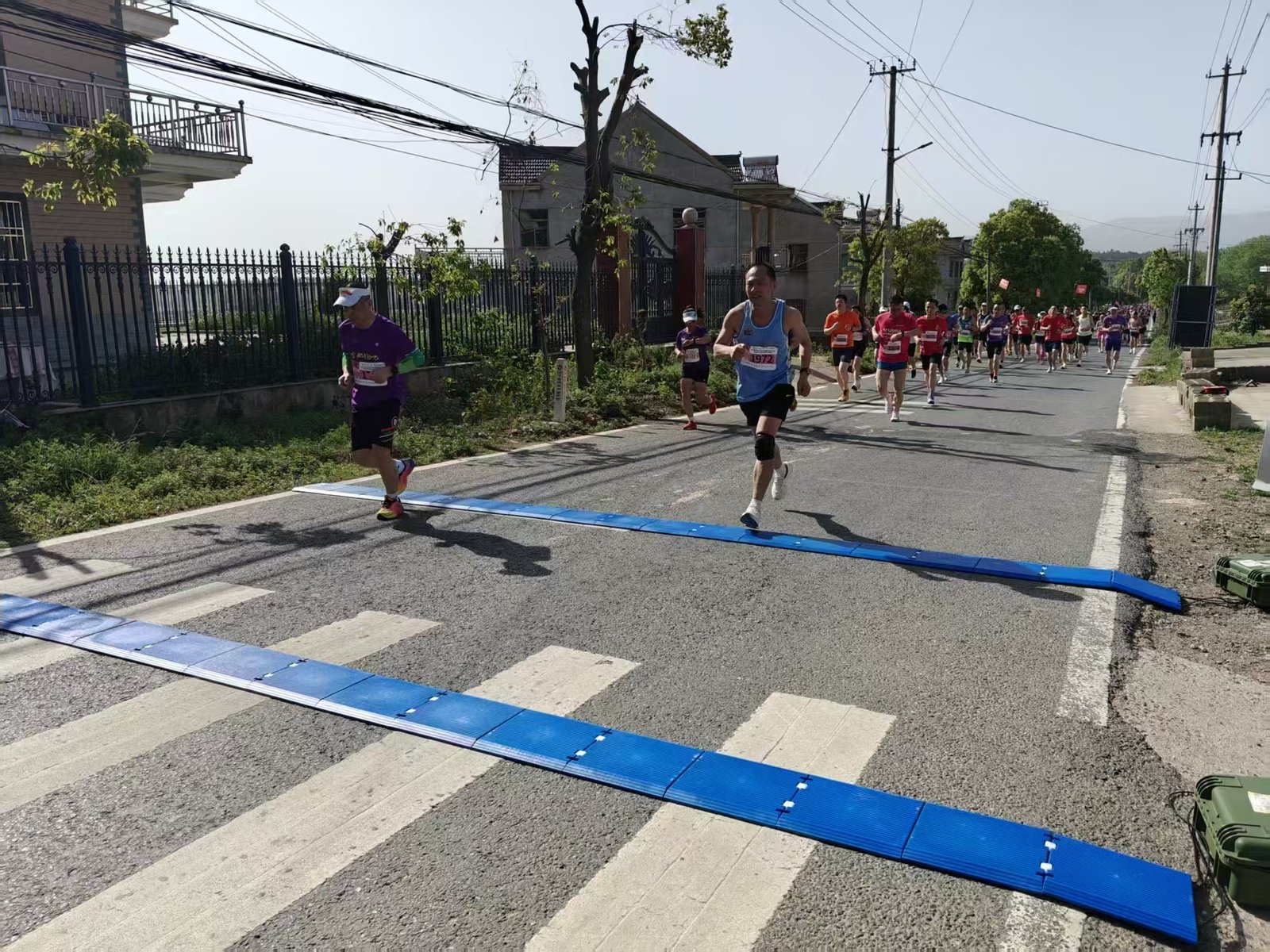

This UHF RFID floor carpet antenna provides a reading range of around 1.5 meters for reliable tag detection. Its durable rubber design is pressure-resistant, wear-resistant, and waterproof, making it suitable for high-traffic areas. Ideal for race timing, personnel management, access control, and event tracking.
Features
- 8.5 dBi circular polarization for strong RFID performance.
- Reading range of around 1.5 m for reliable tag detection.
- Durable rubber carpet design with pressure, wear, and water resistance.
- IP67-rated for demanding indoor and outdoor environments.
- Floor-mounted design for easy deployment in event and tracking areas.
Specifications
| ELECTRICAL | |
| Frequency Range | 902-928 Mhz |
| Polarization | Circular |
| Far-Field Gain | 8.5 dBi |
| Beamwidth | 65° x 65° |
| Typical VSWR | ≤2 |
| Nominal Impedance | 50 (Ω) |
| Maximum Input Power | 100 W |
| Lightning protection | DC grounding |
| PHYSICAL | |
| Dimensions (L x W x D) | 333*330*22mm x 3 pieces |
| Weight | 3 kg |
| Radome Material | PC+ABS |
| Environmental Rating | IP67 |
| Connector type / position: | SMA female |
| Color | Blue |
| Operating Temperature | -30 – +80°C |
| Storage Temperature | -40 – +85°C |
Radiation Pattern
