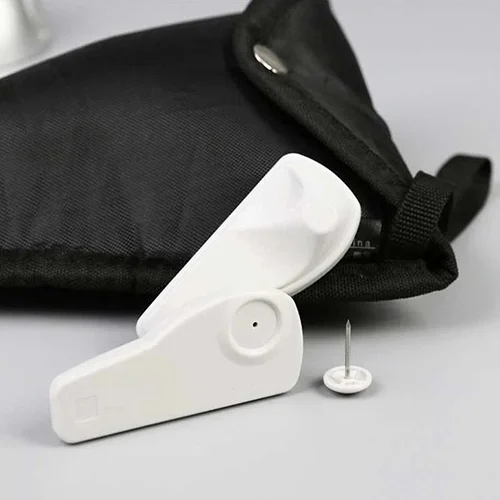

The tag supports both EAS and UHF RFID, providing anti-theft protection and efficient RFID inventory management in one solution. It can be reused multiple times, helping improve inventory efficiency while reducing operating costs. Ideal for apparel, footwear, and retail applications.
Features
- Combines EAS anti-theft and UHF RFID functions in one tag.
- Reusable for cost-effective retail operations.
- Provides reliable UHF reading performance for fast inventory counting.
- Supports UHF read range up to 5 m with fixed readers.
- Ideal for apparel, footwear, and retail applications.
Specifications
| PHYSICAL | |
| Housing Material | Plastic / Aluminum alloy |
| Size | 68.5mm X 30.5mmX 20.5mm / 37*73mm |
| Magnetic force | ≥7500/8500/10000/12000 |
| Weight | 1.5g |
| Ambient Temperature | -20°C ~ 60°C |
| Package | 10g/pc 1000pc/box 10KGS/box ; G.W.:310g /pc 20.6kgs/box |
| Attachment | With nail |
| RFID | |
| Protocol | EPC global C1 Gen2 / ISO 18000-6C |
| Frequency | 902-928MHz, 865-868MHz |
| Working Mode | Read/Write |
| Modulation Mode | FHSS |
| Chip | Impinj MR6 Optional |
| Read Range | Fixed reader: 0-5 m, Handheld: 0-2m |
| User Memory | EPC≥96bits, User Memory 512 bits |
| Data Rate | Forward: 40-160kbits/s, reverse:40-640kbits/s |
| Data Protection | Password modify, lock, kill |
| Data-hold | >10 years, wipe more than 100,000 times |
