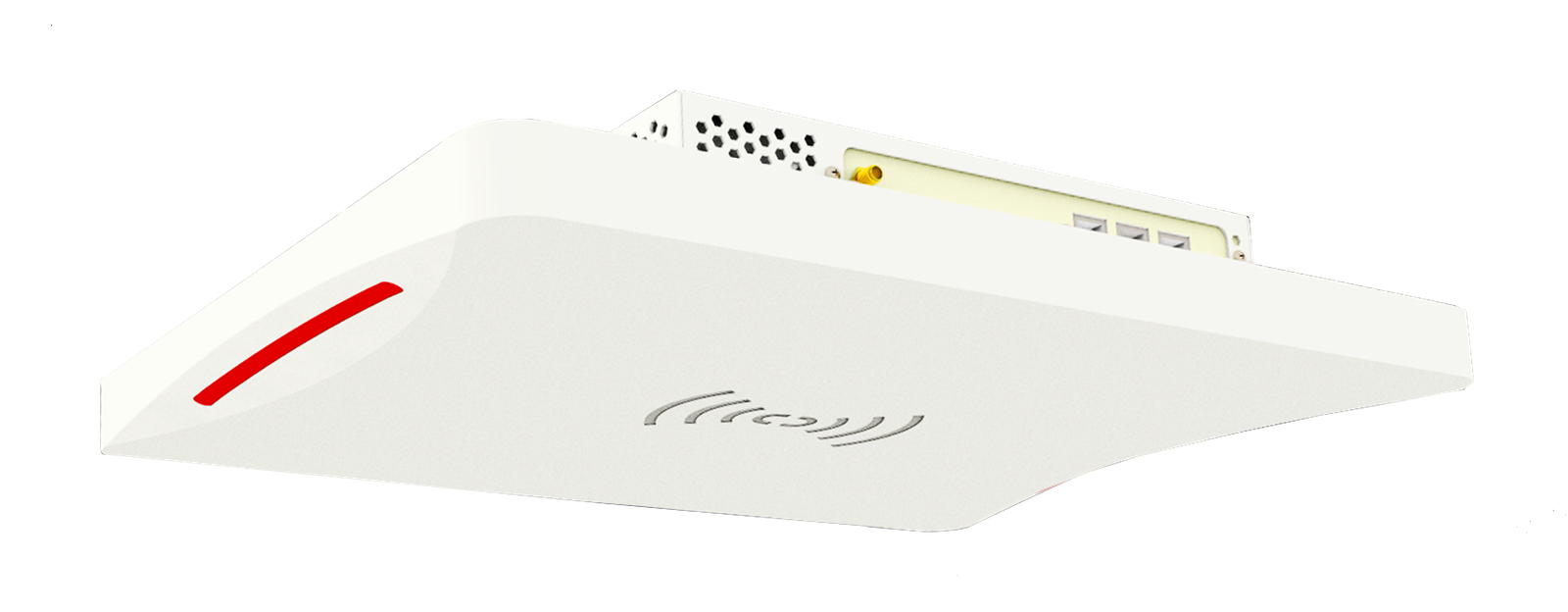

The URX3 overhead portal is a seamless integrated reader with a built-in phased-array antenna and smart algorithm enabling precise in/out tag differentiation and minimizing false reads.
Features
- Seamless connectivity via Ethernet and WiFi
- Supports local, app, and cloud-based management.
- The centralized management platform for seamless remote configuration, monitoring, and maintenance across multiple devices.
- High-performance chipset enables strong multi-tag reading capability.
- Built-in phased-array antenna with AI filtering reduces false reads and interference.
- Store-side detection range: ≤ 50 cm.
- Supports standalone and scalable deployment (1 master + 2 slave units).
- Integrated alarm system with light and buzzer, supporting multiple alarm modes.
- Ceiling-mounted installation (2.5–4 m) with 2.5–3 m coverage width.
Specifications
| PHYSICAL | |
| Dimension | 434mm*339mm*76mm |
| Weight | 5.5 KG |
| Shell Material | Die-cast aluminum+ ABS |
| Indicator Light | Alarming |
| RFID | |
| Protocol | ISO18000-6B/C, EPC C1G2 |
| Chip | Impinj E710 or FDmicro |
| Work Frequency | 902-928Mhz; 865-868Mhz |
| RF Output | 5dBm-33dBm (±1dBm) adjustable |
| Built-in Antenna | Phased-array antenna |
| Installation Height | 2.5～4 m |
| Covering Width | 2-3 m |
| Store-side Detection | ≤ 50 cm |
| Anti-conflict | Support multi-tag/intensive reading |
| CONNECTION | |
| Communication | RJ45, WiFi |
| Power Supply | AC100-240V,50/60HZ or POE(IEEE 802.3 at/bt) |
| Antenna Port | Support 2 sub units |
| ENVIRONMENT | |
| Work Temperature | -20 – +60°C |
| Storage Temperature | -30 – +70°C |
| Work Humidity | 5-95% non-condensing (+25℃) |
| Protection Level | IP55 |
