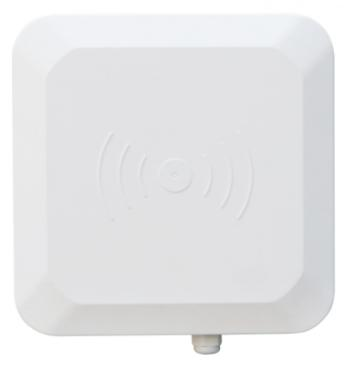

URI8 is an economical integrated UHF RFID reader designed for reliable long-range and multi-tag identification. Built with a high-performance chipset and integrated 8 dBi circular antenna, it delivers reading range of up to 15 meters while maintaining fast, stable tag reading. Enable easy integration into vehicle tracking, E-toll collection, asset tracking, and other RFID applications.
Features
- Based on Impinj chip, it supports ISO/IEC 18000-6C (EPC C1G2) tags with reliable multi-tag reading.
- Adjustable RF output power up to 33 dBm for flexible read range control.
- Built-in 8 dBi circularly polarized antenna with a typical reading range of up to 15 meters.
- Supports active and responsive operating modes for flexible deployment.
- RS232, RS485, and Wiegand interfaces enable easy system integration.
- High-reliability design for stable operation in harsh environments.
Specifications
| PHYSICAL | |
| Dimensions | 225mm×225mm×55mm |
| Weight | 0.9kg (Without accessories) |
| Housing Material | Aluminum +ABS |
| Accessories | Bracket, screws (The adapter is not involved) |
| RFID | |
| Air Protocols | ISO/IEC18000-6C / EPC C1Gen2 |
| Frequency | USA: 902 MHz-928MHz (FCC part 15)EU：865MHz～868MHz (ETSI EN 302208)Specified frequency for other regions |
| Built-in antenna | Circular 8dBi, VSWR ≤ 1.2:1 |
| RF Output Power | 0dBm-33dBm (±1dBm) adjustable |
| Channel bandwidth: | ＜200KHz |
| Read Distance | 0-15m (According to Tag & Environment) |
| Read Speed | 500 times/sec |
| Anti-collision | Support multi-tag inventory |
| Work Mode: | Fixed/hop frequency optional |
| CONNECTION | |
| Communications | RS232, RS485, Wiegand26/34/66 |
| Power supply | DC9V-30V, 12W |
| ENVIRONMENTAL | |
| Operating Temp. | -20～+70°C |
| Storage Temp. | -40～+85°C |
| Humidity | 5-90% non-condensing (+25℃) |
| Sealing | IP65 |
