Flexible anti-metal RFID tag made of PET + EVA, providing reliable performance on both metal and non-metal surfaces. Specially designed for ESD-resistant packaging and semiconductor applications, with support for personalized printing and RFID encoding using compatible printers.
Features
- PET + EVA construction for flexible use on metal and non-metal surfaces.
- Suitable for ESD-resistant bags and semiconductor packaging.
- Supports personalized data printing and RFID encoding.
- Reliable performance for asset and equipment management.
Specifications
| PHYSICAL | |
| Material | PET+EVA |
| Sticker | Strong sticker |
| Dimension | 66*44*1.25 MM |
| Weight | 0.01g / pc |

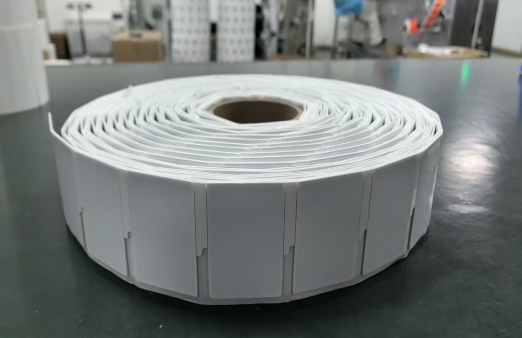

| Delivery format | 500 pcs/roll |
| Roll inner diameter | 3 inch (76.2mm) |
| RFID | |
| Air interface protocol | EPC Global Class1 Gen2/ ISO 18000-6C |
| Operational frequency | ETSI 865-868MHZ or FCC 902-928MHz |
| IC type | Impinj M730 |
| Memory configuration | EPC:128bit；User 0bit |
| Read range | 0-8 m |
| Data hold | 10 years |
| ENVIRONMENT | |
| Operating temperature | -40°C～85°C / -40°F to +185°F |
| Ambient temperature | -40°C～85°C / -40°F to +185°F |
| Storage condition | 3 year at +20°C / 50％ RH |
| Protection level | IP55 |
