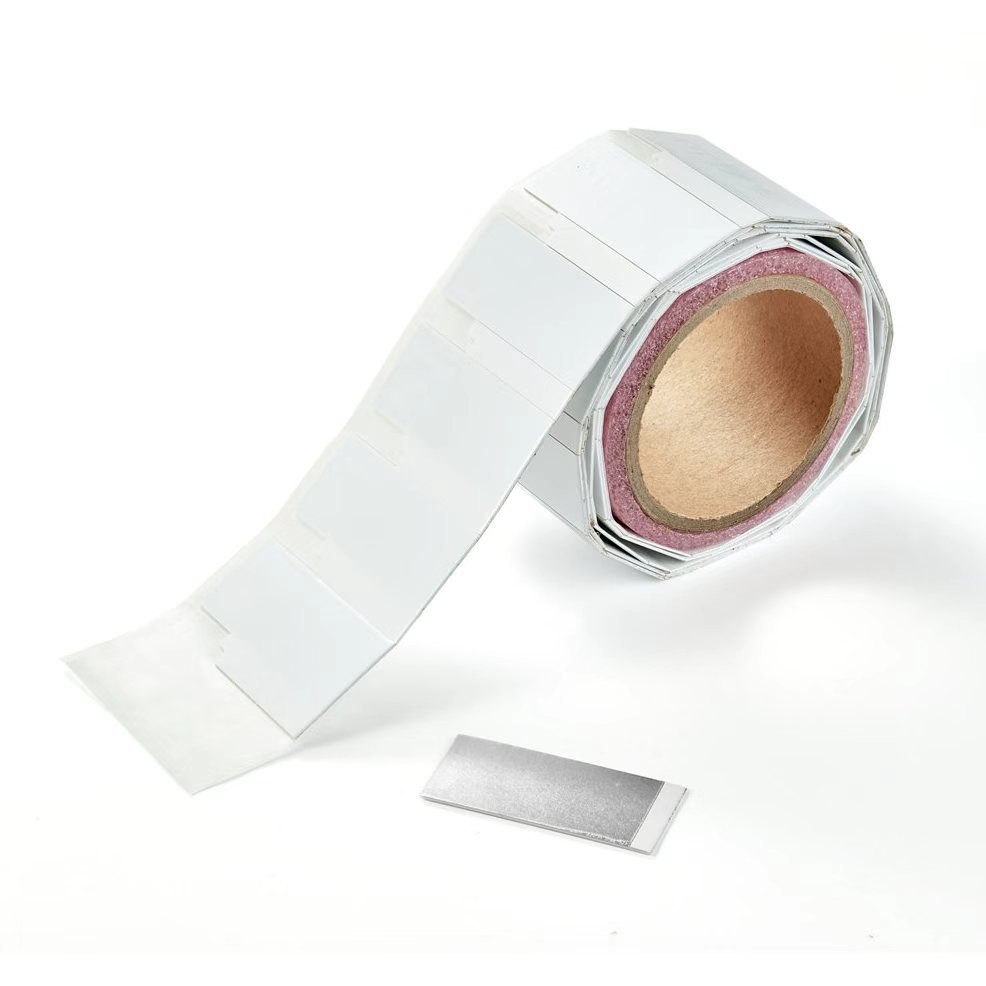

Flexible Anti-Metal RFID Tag provides stable performance on metal and conductive surfaces, with a read range of 1–4 meters depending on size. It supports printing and encoding and is ideal for asset and equipment management.
Features
- Designed for metal asset management and tracking.
- Stable performance on metal and conductive surfaces.
- Read range up to 1–4 meters, depending on tag size.
- Supports printing and RFID encoding.
- Available in various sizes to meet different application requirements.
Specifications
| PHYSICAL | |
| Material | PET+EVA |
| Sticker | Strong sticker |
| Dimension | 50*15*1.25mm |
| Weight | 0.01g / pc |
| Delivery format | 500 pcs/roll |
| Roll inner diameter | 3 inch (76.2mm) |
| RFID | |
| Air interface protocol | EPC Global Class1 Gen2/ ISO 18000-6C |
| Operational frequency | ETSI 865-868MHZ or FCC 902-928MHz |
| IC type | NXP U8/9 |
| Memory configuration | EPC:128bit；User 0 bit |
| Read range | 0-6 m (Fixed reader) |
| Data hold | 10 years |
| ENVIRONMENT | |
| Operating temperature | -40°C～85°C / -40°F to +185°F |
| Ambient temperature | -40°C～85°C / -40°F to +185°F |
| Storage condition | 2 year at +20°C / 50％ RH |
