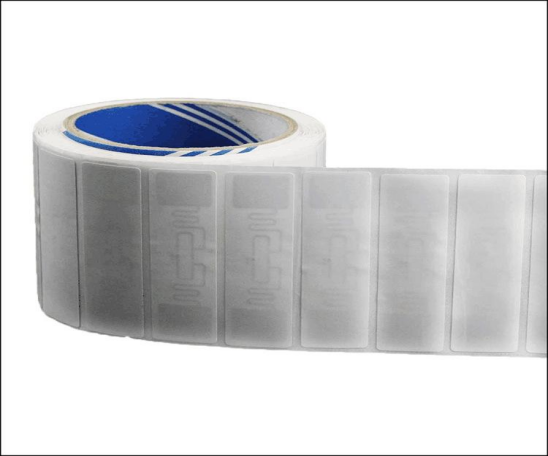

The UHF RFID paper label combines a large printable surface with reliable RFID performance, offering a reading range of up to 15 meters. It supports both printing and data writing, making it suitable for efficient item identification and tracking. Ideal for warehousing, retail, logistics, and asset management applications.
Features
- Large 73 × 20 mm size for clear printing and easy identification.
- UHF RFID performance with up to 15 m reading range.
- Printable and writable for flexible data management.
- Coated paper material for smooth, high-quality printing.
- Ideal for warehouse, retail, logistics, and asset management.
Specifications
| PHYSICAL | |
| Material | Coated paper |
| Liner | Glassine Liner |
| Dimension | 73*20mm |
| Pitch on reel | 82.55 mm / 3.25” |
| Reel core inner diameter | 76 mm / 3” |
| Weight | 0.01g / pc |
| Delivery format | 2000 pcs/roll |
| Sticker | Sticker |
| RFID | |
| Air interface protocol | EPC Global Class1 Gen2/ ISO 18000-6C |
| Operational frequency | Global 860-960MHz |
| IC type | Ucode 9 |
| Memory configuration | EPC 96 bits; User Memory 128 bits |
| Read range | 0-15 m |
| Data hold | 10 years |
| ENVIRONMENT | |
| Operating temperature | -20°C～80°C / -4°F～176°F |
| Ambient temperature | -20°C～80°C / -4°F～176°F |
| Storage condition | 2 year at +20°C / 50％ RH |

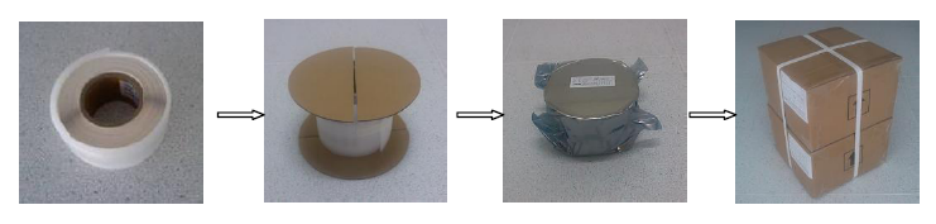

Package
