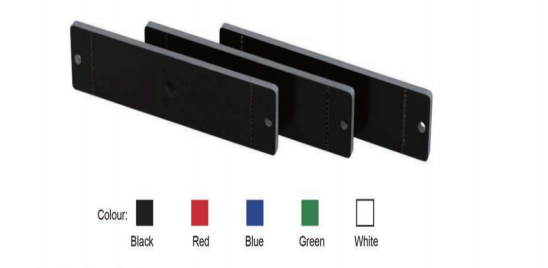

PCB RFID Tag is made with high-grade FR4 material, delivering enhanced reading performance when attached to metal surfaces. It is IP68 waterproof and wear-resistant, with mounting options including adhesive, screws, or resin encapsulation. Ideal for tool, equipment, and asset management.
Features
- High-grade FR4 material with enhanced performance on metal surfaces.
- IP68 waterproof and wear-resistant for long-lasting use.
- Supports adhesive, screw, or resin mounting.
- Available in multiple sizes for different assets.
- Supports customized logo and QR code printing.
Specifications
| PHYSICAL | |
| Material | PCB, FR4 |
| Sticker | With strong sticker |
| Dimension | 80*20*3mm（Hole: 3mm） |
| Weight | 12 g |
| Protection Level | IP65 |
| Installation | Securely fixed with strong adhesive or screws |
| RFID | |
| Air interface protocol | EPC Global Class1 Gen2/ ISO 18000-6C |
| Operational frequency | ETSI 865-868MHZ or FCC 902-928MHz |
| IC type | NXP U8/9 |
| Memory configuration | EPC: 128 bits；User: 0 bit |
| Read range | Max 10 m by fixed reader, 6m by handheld reader |
| Data hold | >10 years, Wipe more than 100000 times |
| ENVIRONMENT | |
| Operating temperature | -30°C～100°C |
| Ambient temperature | -40°C～140°C |
| Storage condition | +20°C / 90％ RH |
