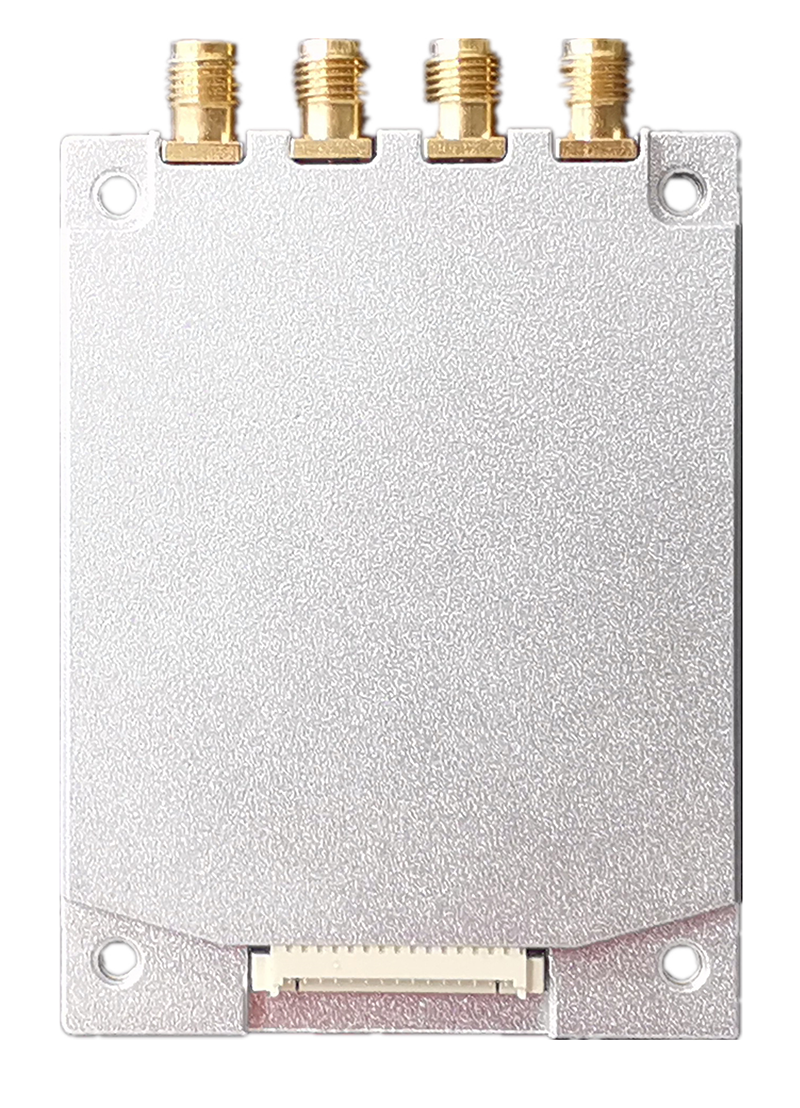

UMN4 is a high-performance UHF reader module for build the fixed readers or with other devices, which features 4 high performance antenna ports, delivering up to 33dBm RF output, which can achieve a read range of up to 15m. Feature-rich SDKs and interfaces are provided, allowing users to quickly develop, deploy and maintain in a short period of time.
Features
- Support protocol: ISO18000-6B/C EPC C1G2
- Working mode: fixed frequency/frequency hopping optional
- Adjustable 0-33dbm RF output power,1 dB step-by-step
- RSSI support: the strength of the signal can be sensed.
- Support tag data filtering
- Support Anti-collision algorithm
- Support multiple tags inventory
Specifications
| PHYSICAL | |
| Dimensions | 72.8mm×54.8mm×8.1mm |
| Weight | 70 g |
| Housing Material | Aluminum |
| RFID | |
| Air Protocols | ISO/IEC18000-6B, 6C / EPC C1Gen2 |
| Frequency | USA: 902 MHz-928MHz (FCC part 15) |
| EU: 865-868MHz (ETSI EN 302208) | |
| Read Range | 0-15m |
| Read Speed | 500 reads/sec |
| Output Power | 0dBm-33dBm (±1dBm) adjustable |
| Channel Bandwidth | ＜200KHz |
| Port Isolation | >30dB |
| Anti-collision | Support multi-tag / intensive inventory |
| Work Mode | Fixed/hop frequency optional |
| CONNECTIVITY | |
| Data | 15pin Connector |
| Antenna Ports | SMA-K x 4 |
| ENVIRONMENTAL | |
| Operating Temp. | -20 – +70°C |
| Storage Temp. | -40 – +85°C |
| Humidity | 5-95% non-condensing (+25℃) |
