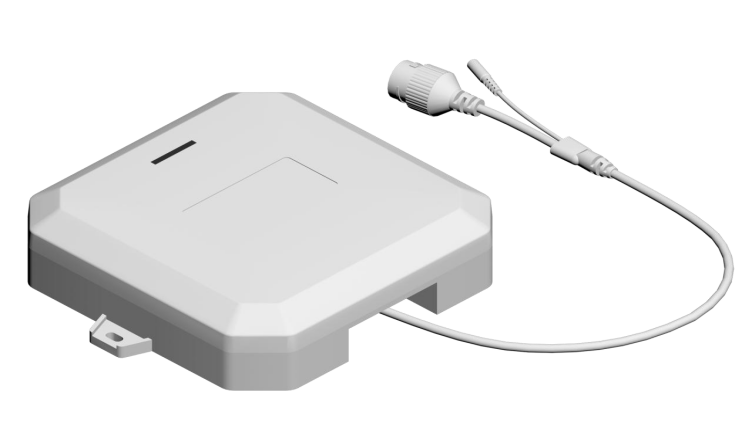

The base station for accurate real-time location tracking. It combines TOF positioning, wide signal coverage, and PoE connectivity for easy deployment. With an IP67-rated design, it is ideal for industrial environments such as factories, warehouses, tunnels, and construction sites.
Features
- <10 cm positioning accuracy for precise real-time tracking
- 100+ m coverage radius for wide-area positioning
- TOF-based positioning for accurate distance measurement
- 5 dBi omnidirectional antenna for broad signal coverage
- PoE support for simplified power and data deployment
Specifications
| UWB | |
| Frequency | 6-7 GHz |
| Positioning Standard | 802.15.4a |
| Output Power | ≤-41dBm/MHz |
| Power Consumption | <3W |
| Antenna | 5dbi |
| Channel Bandwidth | 500MHz |
| Positioning Accuracy | <10cm |
| Coverage Radius | >100m (no obstruction or interference) |
| Coverage Area | >10000㎡ |
| CONNECTION | |
| Communications | RJ45 LAN port (10/100 Mbps) |
| Wireless | WiFi (Optional) |
| POE | IEEEE802.3af/at/bt |
| Power supply | DC12V or POE 48V |
| PHYSICAL | |
| Dimensions | 1460*160*40 mm |
| Weight | 0.3 kg (Without accessories) |
| Housing Material | Alloy+ABS |
| Installation | Wall or bracket mount |
| ENVIRONMENTAL | |
| Operating Temp. | -30～+70°C |
| Storage Temp. | -30～+85°C |
| Humidity | 0-95% non-condensing (+25℃) |
| Protection Rating | IP67 |
