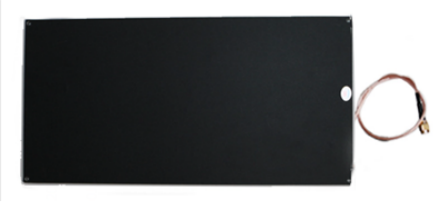

Designed for precise short-range tag reading on desktops and workstations. With a large 600×300 mm reading surface and only 6 mm thickness, it is easy to install under or inside a desktop, cabinet, or other confined space. It is ideal for smart cabinets, asset management, retail, and desktop inventory applications.
Features
- Near-field RFID antenna for short-range, precise tag reading.
- Ultra-slim 6 mm design for easy integration into limited spaces.
- Large 600 × 300 mm reading surface for convenient desktop inventory.
Specifications
| PHYSICAL | |
| Size: | 600*300*6mm |
| Weight: | 1.5KG |
| Housing Material: | PVC, black |
| Cable | 15cm, SMA-female port |
| Protection level: | IP66 |
| PERFORMANCE | |
| Frequency: | 865-868MHz or 902-928Mhz |
| Gain | – 10 dBi |
| Front-back | ≥20 dB |
| Read Range | < 1.5 meters |
| Impedance | 50 (Ω) |
| VSWR | <1.8:1 |
| Maximum Input Power | 50W |
| IM.3rd Order(2x43dBm) | <-150dBc |
| Lightning Protection | DC to ground |
| ENVIRONMENT | |
| Working Temperature: | -20 – +55°C |
| Relative Humidity: | 5%-95% RH no condensing |
