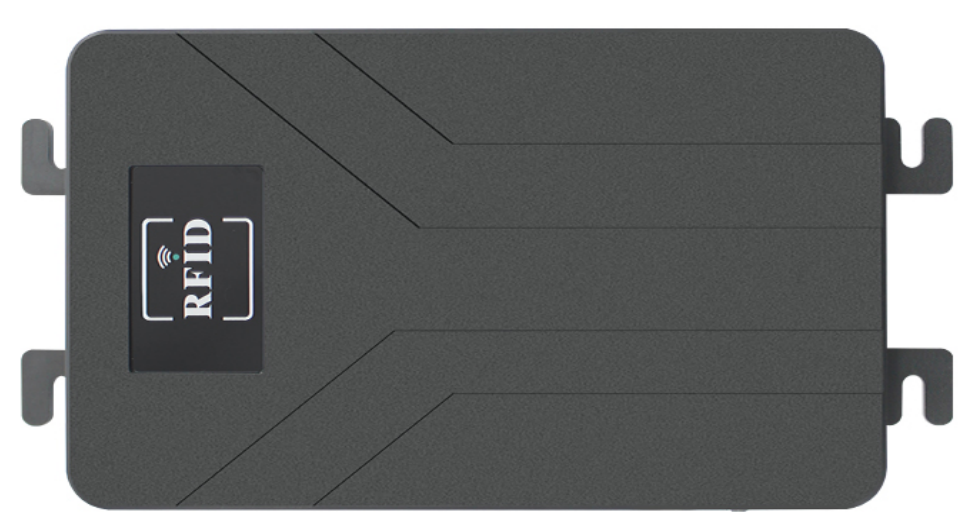

Delivers up to 20 meters of read range and 500 tags per second. With 8 antenna ports. It supports USB, RJ45, and RS232 connectivity, with optional Wi-Fi and Bluetooth, while four pairs of digital I/O provide flexible integration with external devices.
Features
- Powered by high performance chip to reach max 20 meters reading range.
- Max support 8 antennas, suitable for wide range coverage.
- Kinds of communication interfaces: RJ45, RS485, Wiegand, USB, expandable WiFi or Bluetooth.
- Industrial, installation-friendly I/O connector
- Support RSSI filter, antenna detection, online update
Specifications
| DEMO&SDK | |
| Firmware Upgrade | Demo software/Web Platform |
| API Support | C#. Android – Java |
| PHYSICAL | |
| Dimensions | 224*117.2*33 mm |
| Weight | 0.85Kg |
| Housing Material | Aluminum |
| Visual Status Indicators | Reading status |
| RFID | |
| Air Protocols | ISO/IEC18000-6B, 6C / EPC C1Gen2 |
| Frequency | USA: 902 MHz-928MHz (FCC part 15) |
| EU: 865-868MHz (ETSI EN 302208) | |
| Reading range | 0-20m |
| Reading speed | 500 times/sec |
| Output Power: | 0dBm-33dBm (±1dBm) adjustable |
| Channel bandwidth: | ＜200KHz |
| Anti-collision | Support multi-tag / intensive inventory |
| Work Mode: | Fixed/hop frequency optional |
| CONNECTION | |
| Communications | RJ45, RS-485, USB, Wiegand |
| Wireless Connection | WiFi or Bluetooth optional |
| General Purpose I/O | 4 inputs(DC 0~24V), 4 outputs(DC_MAX:30V,2A; AC_MAX:125V,0.3A), optically isolated (Terminal Block) |
| Visual Connection | HDMI port |
| Power supply | DC 24V/2.5A (DC 9V ~ 30V,60W) |
| Antenna Ports | SMA Female port x 8 |
| ENVIRONMENTAL | |
| Operating Temp. | -20 – +70°C |
| Storage Temp. | -40 – +85°C |
| Humidity | 5-95% non-condensing (+25℃) |
| Sealing | IP55 |
